Low speed self-locking DC actuator

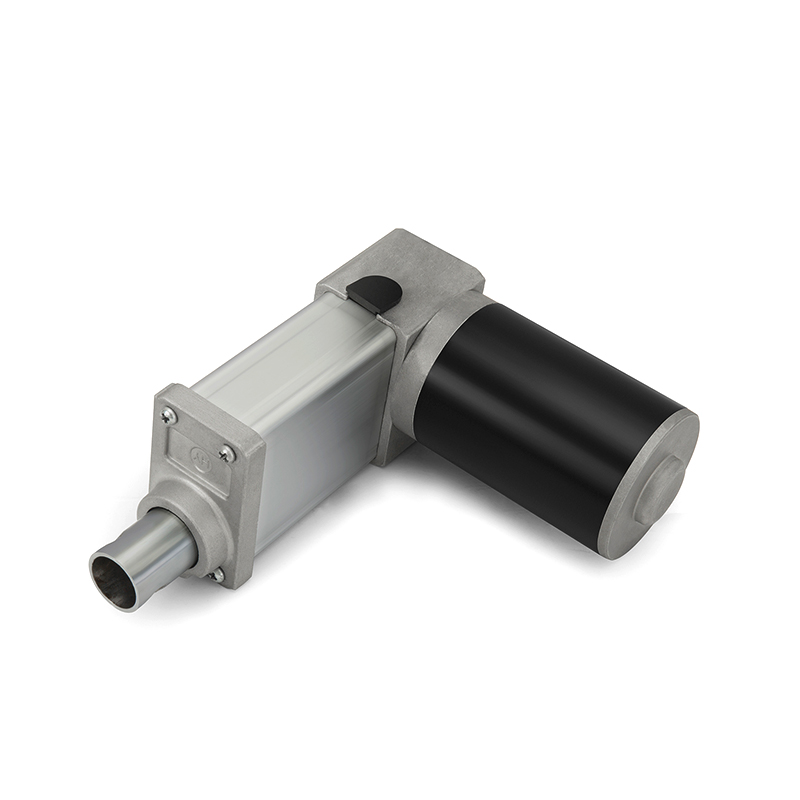

HT63B DC Actuator

Low speed self-locking DC actuator

Customizable low-speed self-locking Hengye motor carbon brush replaceable push rod. Low-speed self-locking DC actuator is a type of device that converts electrical energy into mechanical motion. It is designed to operate at low speeds and has a self-locking feature, meaning it can hold its position without the need for continuous power. This can be particularly useful in applications where stability or safety is a priority. Actuators are devices that produce mechanical motion in response to an electrical signal. In the case of a DC actuator, it utilizes direct current (DC) electrical power to drive its operation.
  • Specifications
    Voltage: 12~48VDC
    Current: 1~5A
    Pout: 30~60W
    Speed: 5~25mm/s
    Max load: 500~3000N
    Stroke: 30~300mm

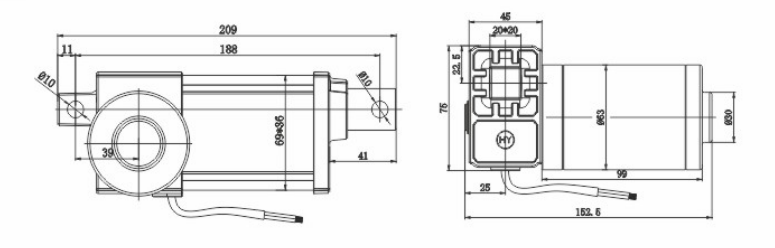

  • Dimensions
  • Feedback
