High-performance AC Variable Oil Pump
HPP80AC CT Tube Oil pump/Stator

High-performance AC Variable Oil Pump

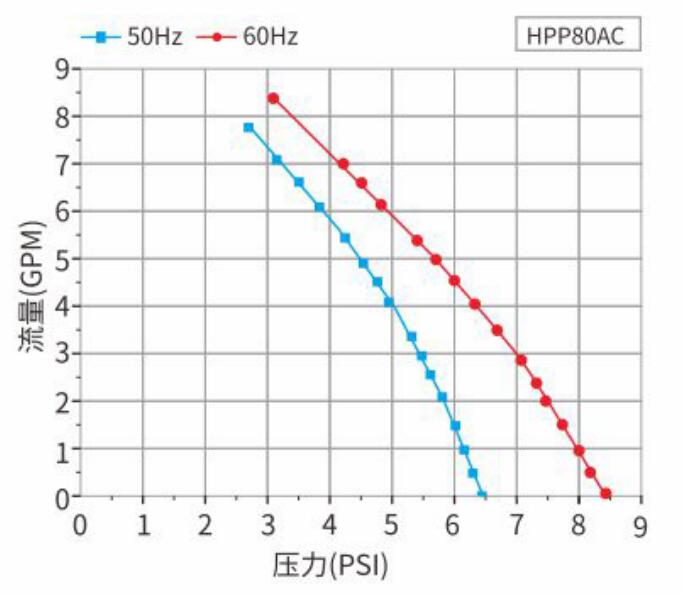

HPP80AC high-performance CT tubing pump is a core drive unit ensuring efficient heat dissipation and continuous stable operation of medical imaging equipment. Model ID 0002, the HPP80AC, offers extremely detailed performance control for AC drive applications. Powered by 229.10V / 60.02Hz, this pump delivers a maximum flow rate of 8.28 Gpm, corresponding to a differential pressure of 3.074 psi (21.19 kPa). When the system requires a higher head, the outlet differential pressure can be increased to 8.445 psi (58.22 kPa). Despite its powerful performance, its operating noise fluctuates only between 58.80 and 62.30 dB, achieving a balance between efficiency and quiet operation. This product maintains consistent fluid physics performance across various medical imaging modes. Customized consultations are available to meet your specific needs.

Message Form
  • High-performance AC Variable Oil Pump
PREV: Silent DC-driven oil pump NEXT: No next product
  • Specifications
    Type HPP80AC ID: 0002
    NO Voltage (V) Current (A) Power (W) Inlet Pressure (Kpa) Outlet Pressure (Kpa) Pressure difference (Psi) Flow (Gpm) Active power (W) Efficiency (%) Liquid temperature (℃) Noise (dB) Freq (Hz)
    1 229.1 0.504 114.8 -8.58 12.61 3.074 8.28 0 0 49.4 62.3 60.02
    2 229.1 0.487 110.9 -4.23 28.88 4.802 6.1 0 0 48.3 60.15 60.02
    3 229.1 0.482 109.6 -2.89 34.34 5.399 5.35 0 0 48.4 59.33 60.02
    4 229.1 0.468 106.4 -0.55 45.44 6.667 3.49 0 0 48.7 57.9 60.02
    5 229.1 0.462 104.8 0.93 48.88 7.077 2.84 0 0 48.88 59 60.02
    6 229.1 0.452 102.5 0.93 54.34 7.847 1.5 0 0 49.3 58.88 60.02
    7 229.1 0.44 99.56 1.64 59.87 8.445 0 0 0 49.7 58.8 60.02
