High-Precision CT Cooling Circulation Pump

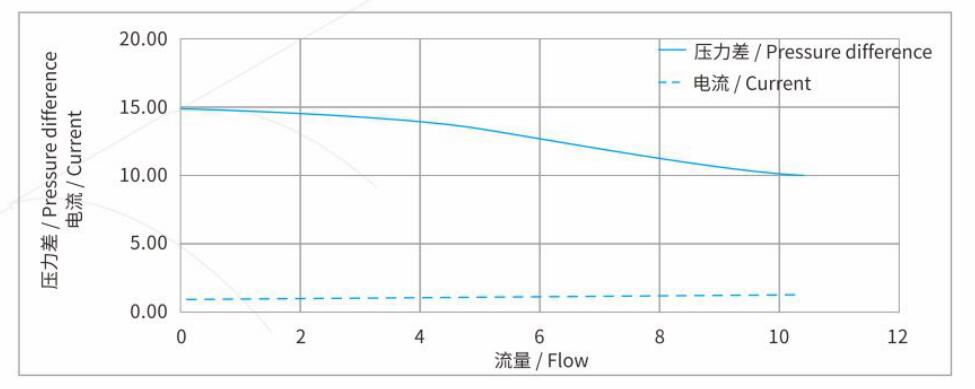

HP40M high-performance CT tubing oil pump is a core drive unit ensuring efficient heat dissipation and continuous stable operation of medical imaging equipment. The HP40M model boasts an extremely compact and precise size (206.35 * 89.7 * 117.51mm), perfectly adapting to the space requirements of various compact CT systems. This pump features wide voltage adaptability, supporting both 230V and 115V power supply modes. Under typical operating conditions of 230V/60Hz, the HP40M's performance figures are remarkable: with an input voltage of 230.73V, its outlet pressure reaches 59.98 kPa, and its maximum flow rate reaches 10.41 Gpm (2.839 m³/h), while the input power is only 256.2W, demonstrating extremely high energy efficiency. Through precision machining and leakage testing simulations, this pump ensures long-term stable circulation of cooling oil, making it the core of the CT system's thermal management system. Customized solutions are available to meet your specific needs.
