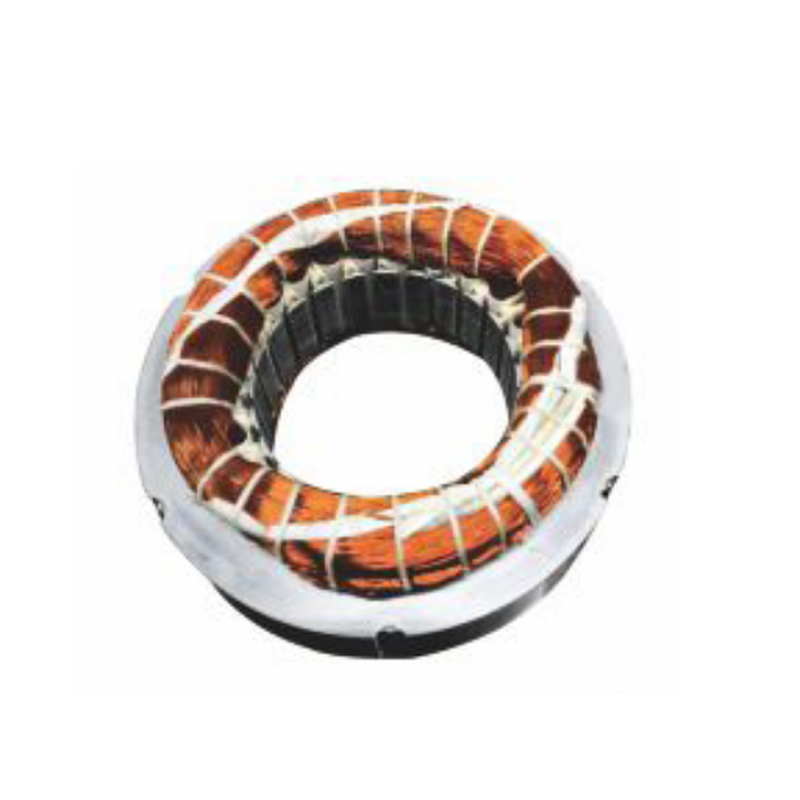

High-pressure 3M housing precision stator

KD14074M precision CT tube stator is a key component ensuring high-precision imaging and stable operation of the equipment. Designed specifically for the imaging requirements of 3M tubes, the KD14074M model features enhanced insulation, achieving a ground withstand voltage of 1950VAC-60s, a high standard among similar products. To achieve excellent thermal conductivity and resistance to mechanical stress, precision machining technology is used to encapsulate the stator core and windings. In terms of electrical performance, the main winding resistance is 14Ω±10%, and the secondary winding resistance is 44.5Ω±10%, totaling 58.5Ω±10%. Regarding inductive reactance, the main winding inductance is set at 59.4mH±10%, while the secondary winding inductance reaches 189.2mH±10%. This parameter combination aims to optimize the starting torque and operational smoothness of medium-capacity X-ray tubes. Each stator embodies our core value of "building quality with perseverance," aiming to provide customers with long-life drive solutions. You can customize a consulting solution according to your own needs.
