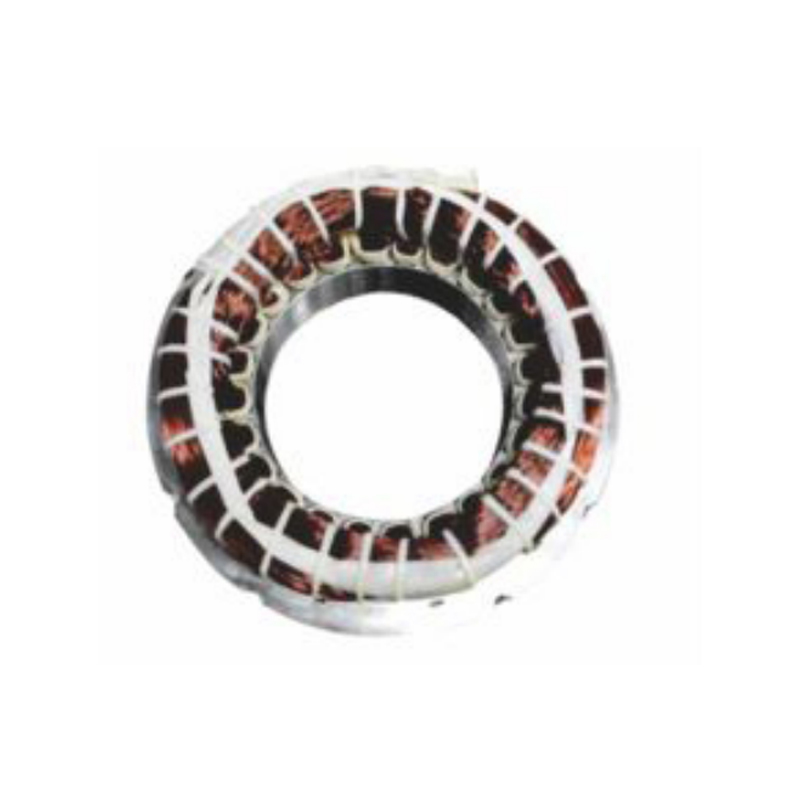

Precision 2.3M housing high-inductance stator

KD2896W01 precision CT tube stator is a key component ensuring high-precision imaging and stable operation of medical imaging equipment. As a core component specifically designed for 2.3M tube housings, this stator utilizes special insulating materials with excellent physicochemical properties, maintaining micron-level dimensional stability even under extremely demanding operating conditions. During manufacturing, CNC machining and EDM precision forming technology ensure optimal balance between electromagnetic field distribution and mechanical heat conduction. In terms of electrical parameters, this product exhibits extremely high reliability: its ground pressure resistance is rated at 1250VAC-60S-5mA, and it has passed the 2100Vrms inter-turn surge test. At 25°C, its main winding resistance is 15Ω±15%, the secondary winding resistance is 47Ω±15%, and the total series resistance of the main and secondary windings is 62Ω±15%. The inductor design is equally precise, with a main winding inductance of 86mH±10% and a secondary winding inductance of 240mH±10%, ensuring dynamic response of the stator during high-speed switching. This product has not only passed static specification calibration but also possesses fatigue resistance to withstand long-term high-load operation in medical systems. You can customize a consultation solution according to your specific needs.
